1970 Potpourri

How about an owner's manual in German?
According to a Vintage Vehicles of Canada spokesperson, only a 1970 Chevelle sold in Quebec would have their owner's manuals in French, all other provinces would provide the owner's manual in English. If anyone has a photo of one in French similar to the one in German above, I'd like to post an image of it.

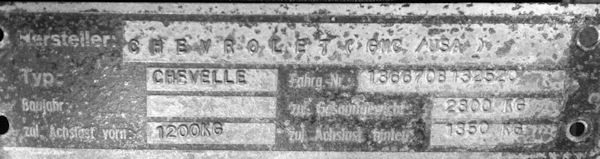

Goes right along with a speedometer in Kilometers Per Hour and
corresponding body tag.
Bulbs and Lamps
| Bulbs and Lamps | Number Required and Trade Number | Candle Power Per Lamp |
| Automatic transmission quadrant | Column, 1 - 194 | 2 |
| Automatic transmission position pattern | Floor console, 2 - 1445 | 2 |
| Back-up | 2 - 1156 | 32 |
| Brake warning | 1 - 194 | 2 |
| Courtesy -
Instrument panel Courtesy - Seat separator |
2 - 631 1 - 212 |
6 6 |
| Directional signal indicators | 2 - 194 | 2 |
| Dome | 1 - 211 | 12 |
| Generator indicator | 1 194 | 2 |
| Glove compartment | 1 - 1895 | 2 |
| Headlamp - Outer | 2 - 4002 | High beam 37.5W Low beam 55.0W |
| Headlamp - Inner | 2 - 4001 | High beam 37.5W |
| Headlamp * | 2 - 6012A | High beam 60W Low beam 50W |
| Headlamp hi-beam indicator | 1 - 194 | 2 |
| Heater controls | 1 - 1445 | 1 |
| Instrument cluster | 10 - 194 | 2 |
| Luggage compartment | 1 - 1003 | 15 |
| Oil pressure indicator | 1 - 194 | 2 |
| Parking - Park Parking - Turn |
2 - 1157 2 - 1157A ** |
3 32 |
| Radio | 1 - 1893 | 2 |
| Side marker - Front | 2 - 194 | 2 |
| Side marker - rear | 2 - 194 | 2 |
| Spot lamp - portable | 1 - 4416 | 30W |
| Tail - Tail Tail - Stop and turn |
2 - 1157 | 3 32 |
| Temperature indicator | 1 - 194 | 2 |
| Underhood | 1 - 93 | 15 |
** SS-optioned Chevelle/El Camino for use with clear front lens and Monte Carlo
